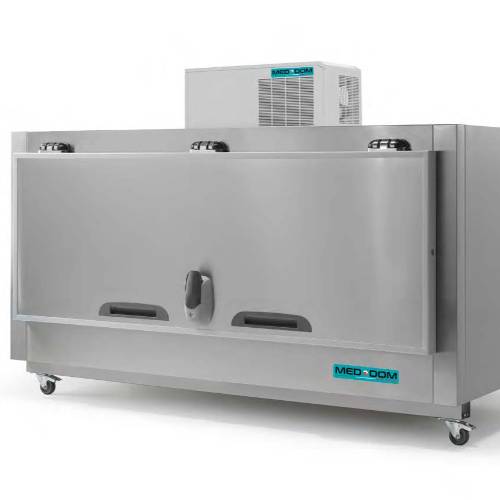

1 PLACE REFRIGERATED MORTUARY CHAMBER WITH DOUBLE-SIDED OPENING
Metal, Stainless Steel
1 COFFIN or 1 BODY
The chamber rests on a tubular AISI 304 stainless steel structure, complete with no. 6 height-adjustable (60/80 H mm) anti-vibration feet, diameter 140 mm to allow laying of drain pipes.
No. 2 doors complete with handle and hinges, with net light hole (L x H) 2250 x 706 mm.
No. 4 rails for easy load and unload.
Side-loading and double-sided opening.
The door is equipped with door frame heating element and compensation valve (only for freezing version).
Monoblock on request. Led light on request.
No. 6 swivel castors already installed (no. 4 with brake + no. 2 without brake) on request.
DIMENSIONS

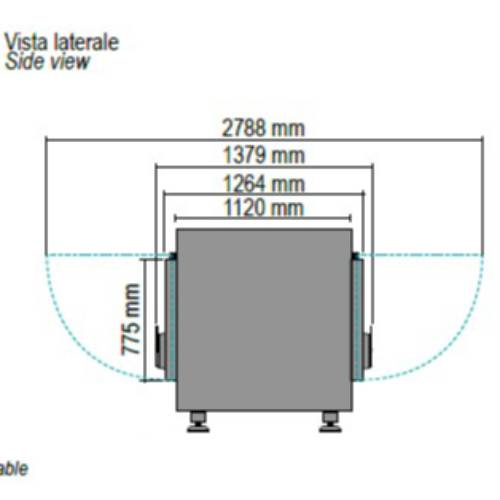

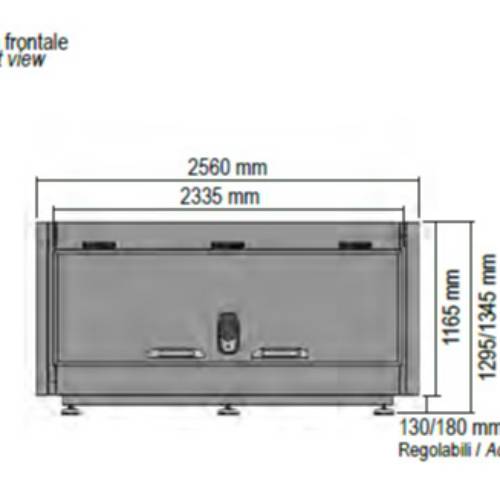

External dimensions (LxDxH): 2560 x 1379 x 1295/1345 mm Internal dimensions (LxDxH): 2400 x 960 x 1005 mm
Internal cubic metres: 2,42
The chamber rests on a tubular AISI 304 stainless steel structure, complete with no. 6 height-adjustable (60/80 H mm) anti-vibration feet, diameter 140 mm to allow laying of drain pipes.
No. 2 doors complete with handle and hinges, with net light hole (L x H) 2250 x 706 mm.
No. 4 rails for easy load and unload.
Side-loading and double-sided opening.
The door is equipped with door frame heating element and compensation valve (only for freezing version).
Monoblock on request. Led light on request.
No. 6 swivel castors already installed (no. 4 with brake + no. 2 without brake) on request.
DIMENSIONS
External dimensions (LxDxH): 2560 x 1379 x 1295/1345 mm Internal dimensions (LxDxH): 2400 x 960 x 1005 mm
Internal cubic metres: 2,42
- Material
- Metal, Stainless Steel
- Length
- 1379 mm cm
- Width
- 2560 mm cm
- Height
- 1295/1345 mm cm
- No. bodies
- 1
- Operating temp.
- 0 - +5°C -20 - +5°C ° C
